3D Digital Twin System for Manufacturing: From Production to Warehouse Logistics

When the actual output of a production line falls below its designed capacity, the problem may come from machine cycle times, WIP accumulation, delayed AGV material supply, insufficient buffer capacity, or even prolonged waiting at a transfer station.

The information needed to identify the cause is often scattered across MES, SCADA, WMS, RCS, and machine control systems. Engineers have to move between different systems and combine the data with observations from the shop floor.

A 3D Digital Twin System brings machines, production lines, warehouses, material-handling routes, and mobile robots into a three-dimensional environment that corresponds to the physical factory while continuously receiving real operational data.

Machine status, WIP, logistics tasks, and spatial information can then be observed, analyzed, and simulated within the same environment.

What Does a 3D Digital Twin System Do in Manufacturing?

Suppose an automated assembly line is designed to produce 120 units per hour but can only maintain an actual output of 105.

A conventional investigation might begin with machine OEE and downtime records. If no obvious equipment problem is found, engineers then need to examine WIP, material supply, and station waiting times.

Connecting these data sources to a 3D Digital Twin System changes how the problem can be analyzed.

Each machine in the virtual production line can correspond to a real asset on the shop floor. Whether a machine is Running, Idle, in Alarm, or under Maintenance can be reflected directly in the 3D model. The same environment can also show where WIP is located and whether an AGV is currently delivering material to the area.

If WIP continues to accumulate in front of a bottleneck station while the machine itself has no fault, engineers can examine the cycle times of the upstream and downstream processes.

If a machine frequently enters an Idle state and AGV replenishment tasks are delayed before each occurrence, the cause may extend beyond the machine itself into the internal logistics process.

These relationships can be difficult to identify from separate equipment reports. When machine status, production tasks, WIP, and logistics data are viewed within the same spatial and time-based environment, the connections become much clearer.

Once a bottleneck has been identified, the same model can be used to test different adjustments.

Buffer capacity can be changed, a station’s cycle time can be modified, or the AGV fleet size can be adjusted. The resulting throughput, waiting time, and WIP can then be compared with the original configuration.

Applications of 3D Digital Twin Systems in Manufacturing

In a manufacturing plant, materials typically move through a continuous internal flow before becoming finished products:

Warehouse → Material Delivery → Line-Side Buffer → Production → WIP Transfer → Finished Goods

A 3D Digital Twin System can follow this entire flow across both production and warehouse logistics.

For example, a warehouse may need to deliver a batch of raw materials to an assembly line.

The WMS already knows where the materials are stored, the RCS assigns the transport task to an AGV, and the vehicle delivers the materials to the line-side buffer. As production consumes the materials, MES continues to generate new replenishment requirements.

If the line-side buffer is too small, an arriving AGV may have nowhere to unload. If it is too large, it may occupy unnecessary production space and increase WIP.

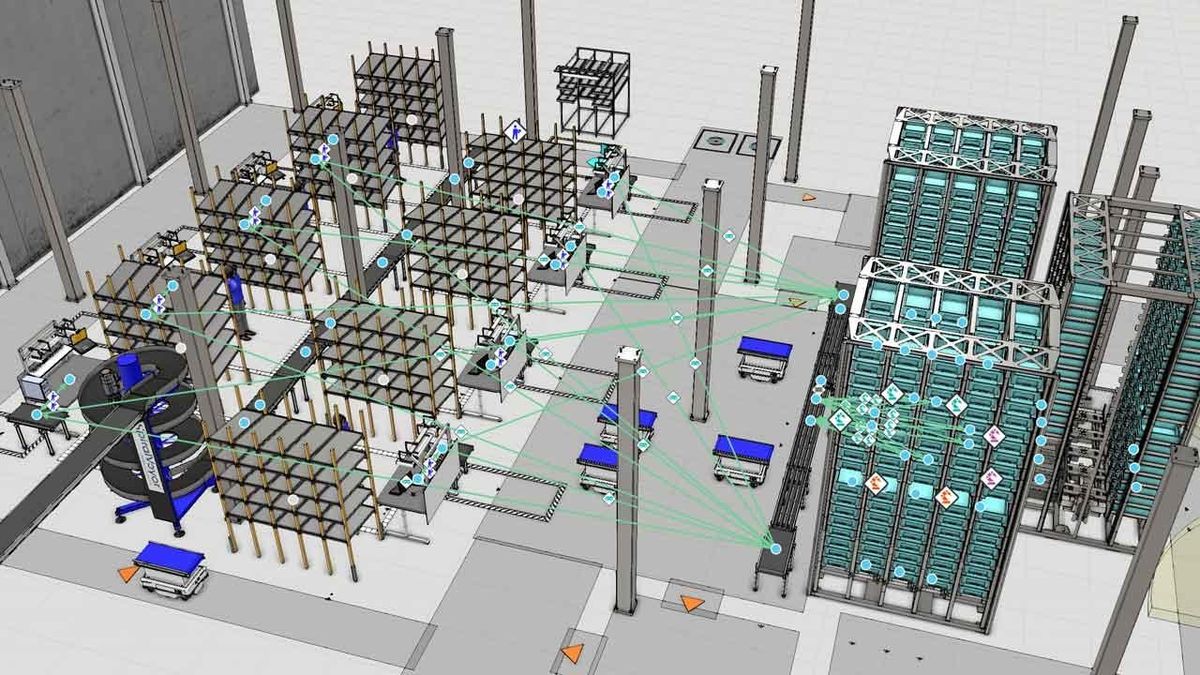

A digital twin can place the warehouse, transport routes, buffer areas, and production line within the same model and show how changes in buffer capacity, AGV quantity, or replenishment frequency affect production flow.

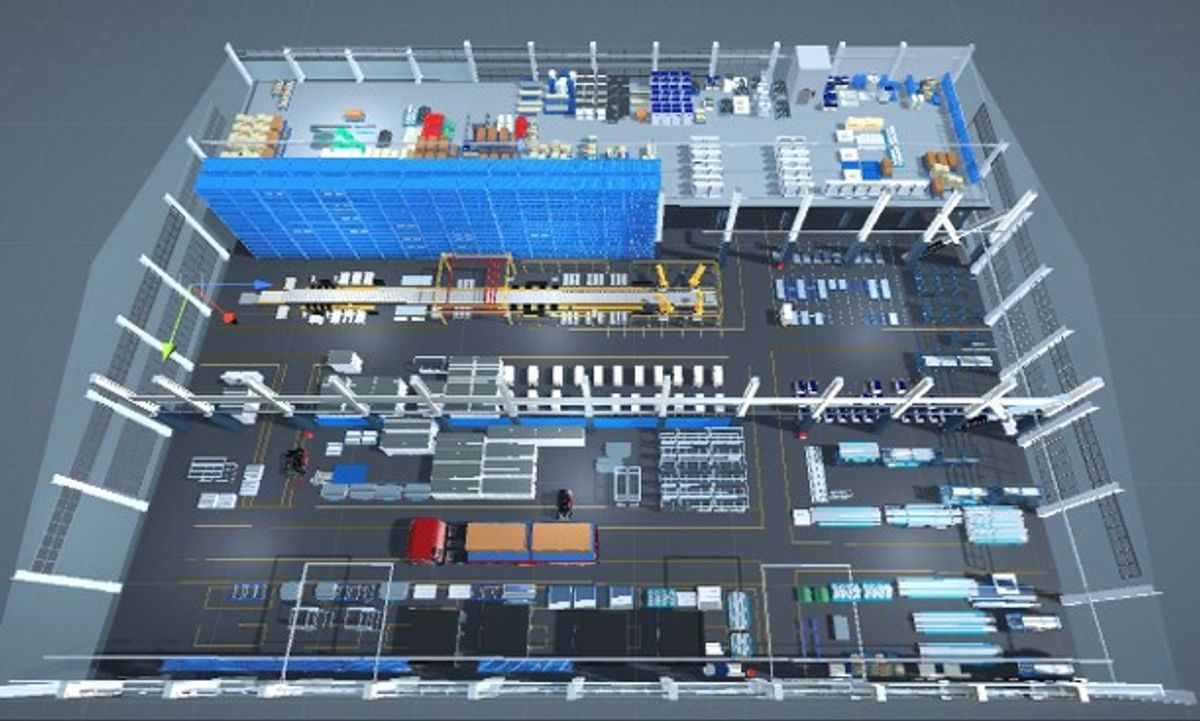

When a new automated assembly line is being planned, machines, workstations, material carriers, and operator areas can also be placed in the virtual environment before installation.

A station with a slightly longer cycle time may not create an obvious problem during a short test, but after several hours of simulated production, WIP may begin to accumulate upstream.

If this type of issue is discovered only after the equipment has been installed, workstation layouts, buffers, and logistics routes may need to be modified on site.

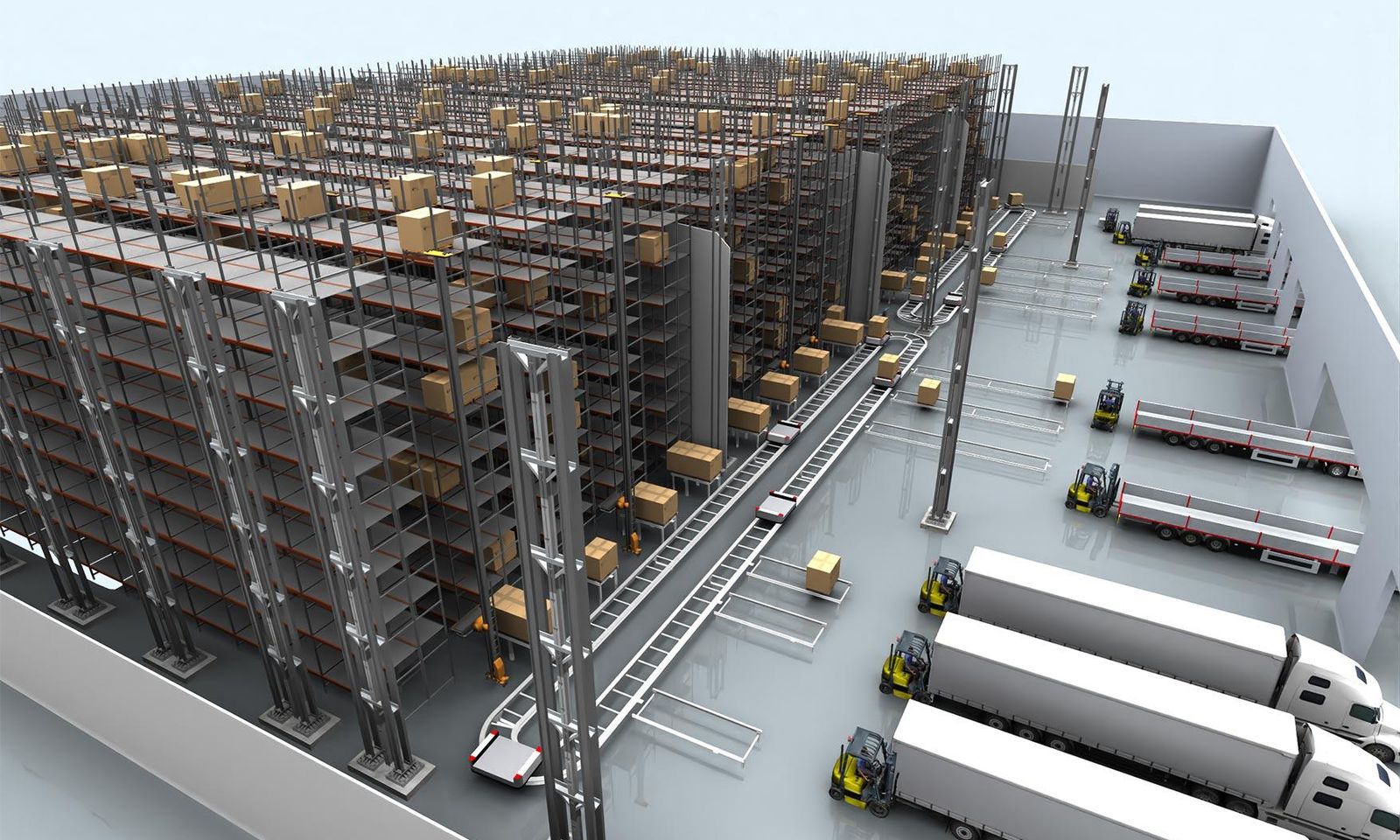

The same problem can occur in an automated warehouse flow involving AS/RS, conveyors, and AGVs.

For example:

AS/RS → Conveyor → AGV → Production Line

The AS/RS may operate correctly, the conveyor may have sufficient capacity, and the planned number of AGVs may already be available, while the overall throughput still remains below target.

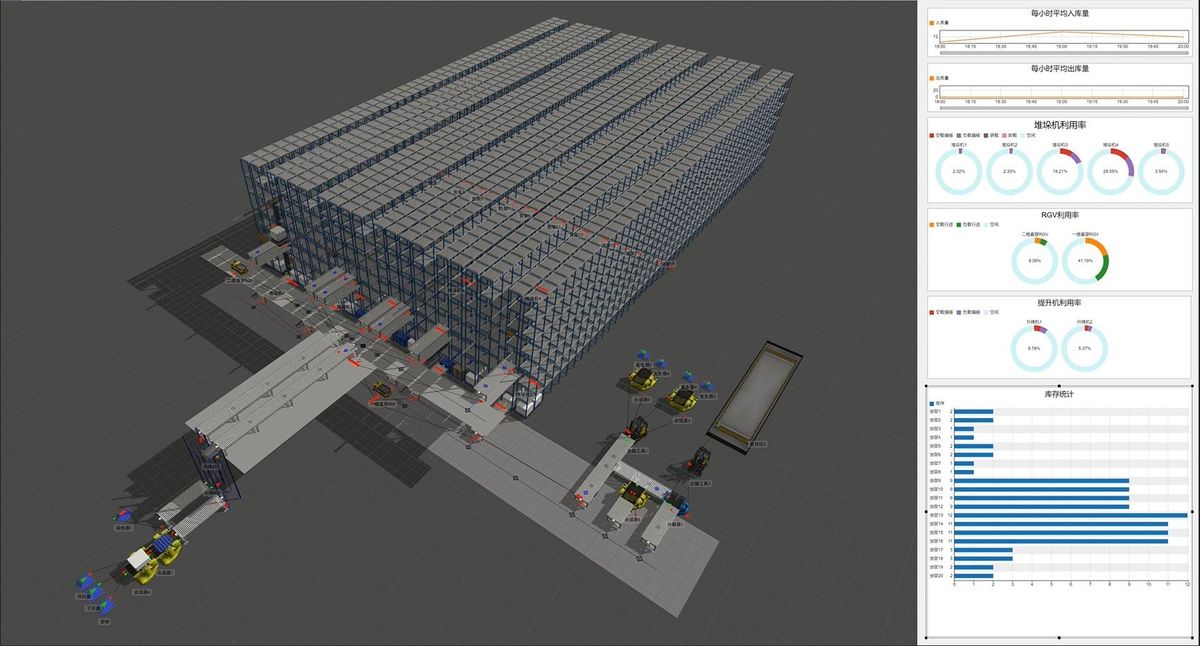

When the complete material flow is simulated in the digital twin, the actual constraint may turn out to be the AGV pickup station. If every pallet handoff takes 20 seconds longer than expected, that transfer point can gradually become the bottleneck as task volume increases.

For manufacturers, production and warehouse logistics are ultimately connected through WIP, material replenishment, and finished-goods movement. A digital twin can therefore expand from an individual machine or warehouse area to a more complete intralogistics flow.

What Systems Can a 3D Digital Twin System Integrate and Interact With?

For a virtual machine to reflect the real factory, it needs access to what is happening on the shop floor.

At the lowest level, this data commonly comes from PLCs, sensors, machine controllers, and SCADA. Machine operating status, alarms, operating modes, and selected process parameters can all be fed into the digital twin.

These signals alone, however, do not provide the full operational context.

A CNC machine shown as Running in the model does not by itself indicate which production order it is processing.

MES can provide that additional context.

Once the machine status is linked with the relevant production order in MES, the digital twin can represent both the equipment condition and the production task being executed.

When the focus shifts from production equipment to AGVs and warehouse automation, logistics task and inventory information also becomes necessary.

A virtual AGV may be moving from Warehouse A to Line 2. Its position and task status may come from the RCS, while information about what it is carrying and why it is being sent to Line 2 may come from the WMS or MES.

WCS can provide additional information about conveyors, AS/RS, sorters, and other automated warehouse equipment.

These data sources are then mapped to virtual assets created from CAD, BIM, or other 3D engineering models.

A virtual asset can therefore contain more than its geometry. It can also carry asset identity, real-time status, production tasks, material information, and logistics relationships.

When the digital twin is used for simulation, the results can also influence engineering decisions.

If the model shows that an AGV route becomes repeatedly congested during peak periods, engineers can test alternative traffic rules in the virtual environment before deciding whether to adjust the RCS.

If reducing the cycle time of one machine by five seconds creates serious downstream accumulation, the production improvement plan may also need to be reconsidered.

Actual production control remains with systems such as MES, PLC, WCS, and RCS. The digital twin primarily provides an environment for linking data, observing operations, and validating changes.

How Can a 3D Digital Twin System Benefit Manufacturing?

When a production line is being expanded, a warehouse is being modified, or additional AGVs are being considered, an incorrect assumption can cost far more than the software used to evaluate the project.

If insufficient maintenance space is discovered only after equipment has been installed, machines may need to be relocated. If a conveyor system is already installed before downstream capacity problems are identified, additional buffers or routing changes may be required. If more AGVs are purchased before realizing that the real bottleneck is a transfer station, the additional vehicles will not eliminate the waiting.

Testing these changes in a digital twin can expose some of these problems before procurement, construction, and production start-up.

For a new production line, this can reduce layout rework and on-site commissioning. In warehouse automation, it can reduce unnecessary equipment purchases caused by an incorrect bottleneck diagnosis. In an operating factory, it can shorten the time required to locate the source of a production or logistics problem.

Traditional reports often show the result of an operational problem, such as reduced output during a shift, lower machine utilization, or increased AGV waiting time.

When machine status, WIP, production tasks, and logistics data are retained within the digital twin, engineers can review the order in which these changes occurred.

They can see when accumulation began at a particular station, whether upstream machines changed state at the same time, whether material delivery was delayed, and how the issue eventually affected downstream operations.

This can be particularly useful during ramp-up. A newly commissioned production line often requires repeated adjustments to equipment, logistics, and process parameters. Identifying whether a problem comes from machine cycle time, buffering, material supply, or logistics scheduling can shorten the time required to reach stable production capacity.

A digital twin can also improve capacity-expansion decisions.

If the existing system can meet future demand by changing logistics routes or buffer strategies, additional AGVs, conveyors, or production equipment may not be required. If the model shows that the current system cannot support the target output, expansion can be planned earlier.

How to Integrate a 3D Digital Twin System and Analyze ROI

A 3D Digital Twin System does not need to cover the entire factory from the beginning. It can start with a production line, a CNC area, or an AGV warehouse zone.

The project can begin by building the corresponding 3D model and then connecting equipment status, production tasks, and logistics data from systems such as PLC, MES, WMS, WCS, and RCS. Once the model can reliably reflect real operations, it can be used for bottleneck analysis, scenario simulation, and operational optimization.

ROI should also be evaluated around that specific use case.

If the digital twin identifies a layout or logistics issue before implementation, the resulting reduction in on-site rework can be counted as a benefit. If virtual commissioning shortens commissioning or ramp-up time, the corresponding engineering hours and downtime costs can also be quantified.

A basic ROI calculation can be expressed as:

ROI = (Quantifiable Benefits − Operating Costs) ÷ Initial Project Investment × 100%

Quantifiable benefits may come from reduced rework, shorter commissioning time, lower downtime losses, higher throughput, or avoided equipment investment.
